Microwave

_

شرکت تلکام آرین با بیش از یک دهه سابقه در زمینه تامین تجهیزات مورد استفاده در شبکه اپراتورها و شرکت های انتقال داده تلاش نموده است تا سبد محصولات و تجهیزات متنوعی متشکل از برندهای مطرح درد این حوزه را در اختیار مشتریان ارزنده خود قرار دهد.
با توجه به تجربه فنی کسب شده طی سالیان گذشته این شرکت آمادگی ارائه راهکارهای مناسب برای استفاده در شرایط و سناریوهای مختلف را دارا میباشد. لیستی از برندهای معتبری که در سبد محصولات ما در این حوزه قرار دارند در ادامه آورده شده است:

SIAE MICROELETTRONICA | MICRAN | NEC | DragonWave | RACOM | Huawei | Ericsson | CBNL



NEC – IPASOLINK VR10

_

Licensed point-to-point wireless from 6 GHz to 42 GHz

High spectral efficiency using a combination of Bandwidth Accelerator and 4096QAM

Highest capacity support with dual channel capabilities delivering up to 4 Gbps per radio using 112MHz channels

Packet based network synchronization with Synchronous Ethernet (SyncE) and IEEE 1588v2 TC/BC

TDM/Ethernet interfaces with optional indoor units for network evolutio

DragonWave

_

Licensed point-to-point wireless from 6 GHz to 42 GHz

High spectral efficiency using a combination of Bandwidth Accelerator and 4096QAM

Highest capacity support with dual channel capabilities delivering up to 4 Gbps per radio using 112MHz channels

Packet based network synchronization with Synchronous Ethernet (SyncE) and IEEE 1588v2 TC/BC

TDM/Ethernet interfaces with optional indoor units for network evolutio

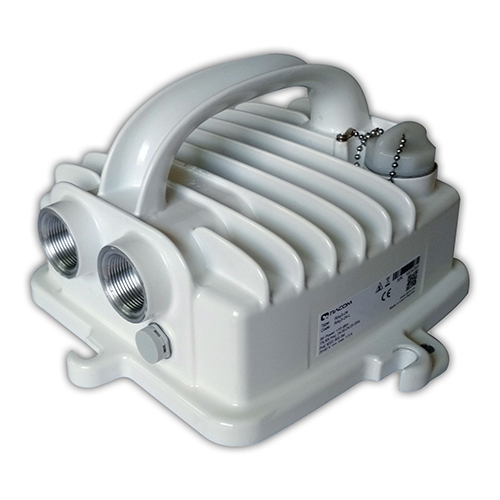

RACOM – RAY3

_

A- 1 Gbps / 24 GHZ / 250 MHZ
B- 713Mbps / 17 GHZ, 24 GHZ / 200 MHZ
C- 3.5-112MHz channels
D- Asymmetric channels
E- AES256, SyncEth, PTP
F- 1xETH, 1x SFP, 1x USB
G- Solar ready–۲۲w
H- Each unit tasted -30 to +55C
I- Full outdoor, easy installation
J- Interference tolerant
K- Ray Tools (Android, ios)

Huawei RTN 980

_

Place of Origin: Guangdong, China
Brand Name: Huawei
Model Number: RTN 980
Type:Optical Fibers, communication
height: 5U
Pluggable: Supported
Number of radio directions: 1 to 14
Dimensions(IDU): 442 mm (W) x 225 mm (H) x 220 mm (D)
Dimensions(ODU): < 280 mm (W) x 280 mm (H) x 92 mm (D)
Typical weight(IDU): 19.7 kg (8*[1+0] configuration)
Typical weight(ODU): < 4.6 kg
Relative humidity: 5% to 95%(IDU); 5% to 100%(ODU)
Earthquake: Compliant with Bellcore GR-63-CORE ZONE 4

Huawei RTN 980L

_

Equipment: IDU, BU, RFU
Wavegulde configuration mode: ACCP/ACAP/CCDP
Number Of Channels: 16
Frequency band: 5/l6/u6/7/8/11 GHZ
Channel spacing: 28/40/56 MHZ
Highest modulation scheme: 1024QAM
Maximum air-interface capacity: 440 to 558 Mbit/s (per carrier)
Switching capacity: 43 Gbit/s (CSHNA), 120 Gbit/s (CSHNU)
Cross-Connect Capacity: 128*128 VC-4
Service port type: E1, STM-1(e/o), STM-4(0), FE(e/o), GE(e/o), 10GE(o)
RF configuration mode: N+0 (n <= 16), N+1 (n <= 11), 1+1 FD, XPIC
IF service type: Integrated IP, SDH
Key Feature: 1+1, XPIC, PLA/EPLA, AM, TDM, PWE3/MPLS, N+1, Anti-theft, space diversity and IF combination, AES-256 encryption

Huawei RTN 380E

_

Place of Origin: China
Brand Name: Huawei
Model Number: RTN 380e
Frequency:71 GHz to 76 GHz, 81 GHz to 86 GHz
Channel Spacing: 62.5/125/250/ 500 MHz
Higest modulation scheme: 64 QAM
Maximum service throughput at air interface: 3.1 Gbit/s
service port type: GE(o/e)
Service Type: Native ETH, PWE3 ETH
Key feature AMAC, 1+1, ATPC, PLA, Anti-theft

Ericsson

_

With unmatched flexibility, MINI-LINK 6000 provides the right solution for each part of the network, all deployment scenarios and site types, enabling sound investments in line with the service providers’ needs. The portfolio offers both split mount and all outdoor short haul as well as long haul solutions covering the complete microwave spectrum from 4 up to 80 GHz. MINI-LINK 6000 offers advanced packet functionality including advanced sync and L3 VPN, using IP/MPLS, as well as L2. All network scenarios are supported with superior performance combined with the lowest possible cost of ownership

CNBL – VectaStar 600 Flex

_

Frequencies : 26GHz (ETSI) , LMDS A2/A3 or 29/31GHZ (FCC)
Capacity: Up to 1.6Gbps per link, Up to 1.6Gbps per sector, Up to 19.2Gbps per hub site
Sector Antennas: 30 adn 90 degree
RT Antennas: 20, 30, 60, 90cm and flat panel
Range: Up to 3.6 miles at 26GHz

CBNL – VectaStar 600

_

Frequencies : 26GHz (ETSI) , LMDS A2/A3 or 29/31GHZ (FCC)
Capacity: Up to 1.6Gbps per link, Up to 1.6Gbps per sector, Up to 19.2Gbps per hub site
Sector Antennas: 30 adn 90 degree
RT Antennas: 20, 30, 60, 90cm and flat panel
Range: Up to 3.6 miles at 26GHz

VectaStar ODU-S

_

VectaStar ODU-S is the market leading licensed PMP microwave platform which is proven in backhauling wide area 2G, 3G, LTE, Wi-Fi and enterprise access networks.
Frequencies: 10.5.GHz (ETSI), 26GHz (ETSI), 28GHz (ETSI), 27GHz (Anatel), 28GHz(FCC)
Capacity: 300Mbps per sector, 600Mbps per sector (2+0 configuration), Up to 7.2Gbps per hub site
Sector antennas: 30 and 90 degree
RT Antennas: 20, 30, 60 and 90cm
Range: 10.5GHz: 28.6km (typical)
۳۶-۲۸GHz: Up to 20km (typical) with 30 degree sector antenna

SIAE MICROELETTRONICA – MICRAN Product

_

System types: 1+0, 1+1 Hot Stand By, Xpic and 2+0 both with layer 1 link aggregation*, Repeater
Radio Capacity: Up to 420 Mbps layer 2 @ 56 MHz and 1024 QAM in 1+0 configuration, Up to 840 Mbps layer 2 @ 56 MHz and 1024 QAM in 2+0 configuration, configuration with layer 1 link aggregation
Frequency Bands(GHz): 6L, 6U, 7, 8, 10.5, 11, 13, 15, 18, 18, 23, 24, 32, 38
Modem: Modulation from 4QAM to 1024 QAM, ETSI Bandwith from 7 MHz to 56 MHz, ANSI Bandwidth from 10 MHz to 60 MHZ, Digital predistortion Reed Solomon and Convolutional FEC, Layer one Linke Aggregation
Ports: 1 PoE GE, 1 XPIC RJ45 and RSSI Alignment for Y-Link c 1 PoE GE, 1 SPF, 1 XPIC RJ45, 1 External Power Supply and 1 RSSI Alignment for Y-Link F
